Refrigerated Shipping Containers
Grade A, marine surveyed & certified containers 20′ and 40′
Prices & availability vary . Contact us for current pricing
Yellow Deck sells shipping containers for shipping:
The distinction is we only sell GRADE A, marine surveyed & certified containers for shipping. We don’t sell container that leak, have bad doors, or are just good enough for storage. Our containers are late model yr.2000 or newer. We make sure you have a good roof, doors, & floors. The structural integrity is inspected and certified by an independent container marine surveyor.
Pickup and Delivery:
We can assist in coordinating pickup and delivery of your container to your freight forwarder and shipping line.
Surveyors and Certification:
The surveyors we use are respected and certificates accepted by all local South Florida shipping lines. Any container you purchase to ship with your cargo will require making a booking specifying “SHIPPER OWNED CONTAINER”. The lines will request the certified inspection certificate for the container prior to authorizing the booking. All containers for shipping must have a VALID CSC plate.
Description and Specifications:
A typical shipping container has doors fitted at one end, and is constructed of corrugated weathering steel. Containers are 8 feet (2.44 m) wide by 8′ 6″ (2.59m) high, and either a nominal 20 feet (6.1 m),40 feet (12.19 m), or 45’ feet (13.71m) long. The high cube 40’ and 45’ container is 9’6” (2.89m) high. The United States and Canada often use longer units at 48 ft (14.63 m) and 53 ft (16.15 m) for rail intermodal service. They can be stacked up to seven units high. At each of the eight corners are castings with openings for twist lock fasteners.

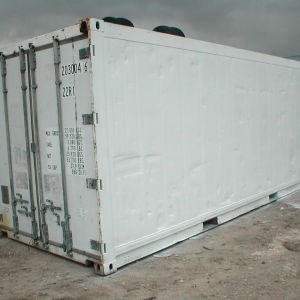

20′ Refrigerated Container Specifications
| Exterior | Interior | ||||
|---|---|---|---|---|---|
| Length | Width | Height | Length | Width | Height |
| 20′-0″ | 8′-0″ | 8′-6″ | 18′- 17/32″ | 7′-6 15/32″ | 7′-5 39/54″ |
| 6.058 m | 2.438 m | 2.591 m | 5.500 m | 2.298 m | 2.276 m |
| Nominal | Weight | |||
|---|---|---|---|---|
| Cubic Capacity | MGW | TARE | ||
| 1,016 cu.ft. | 67,180 lb | 6,700 lb | ||
| 28.8 cu.m. | 30,480 kg | 3,020 kg | ||
| Cooling capacity | Air exchange rate | Type | Temp. control precision | |
| w(kcal)/C(F) | CFM | cu.m/hr | MHI CPE14-2BAIIIEU | +-0.25C |
| 11,000(9,460)/1.7(35) 6,280(5,400)/-18(0) | 0-106 | 0-180 | CARRIER 69NT40-551-501 | +-0.25C |
| 10,550(9,073)/2(35) 6,150(5,289)/-18(0) | 0-142 | 0-240 | ||
40′ Refrigerated Container Specifications
| Exterior | Interior | ||||
|---|---|---|---|---|---|
| Length | Width | Height | Length | Width | Height |
| 40′-0″ | 8′-0″ | 9′-6″ | 37′-11 55/64″ | 7′-6 15/32″ | 8′-4 5/32″ |
| 12.192 m | 2.438 m | 2.896 m | 11.585 m | 2.290 m | 2.544 m |
| Nominal | Weight | |||
|---|---|---|---|---|
| Cubic Capacity | MGW | TARE | ||
| 2,384 cu.ft. | 74,960 lb | 10,490 lb | ||
| 67.5 cu.m. | 34,000 kg | 4,760 kg | ||
| Cooling capacity | Air exchange rate | Type | Temp. control precision | |
| w(kcal)/C(F) | CFM | cu.m/hr | MHI CPE16-2BAIIIEV | +-0.25C |
| 11,000(9,460)/1.7(35) 6,280(5,400)/-18(0) | 0-106 | 0-180 | CARRIER 69NT40-551-501 | +-0.25C |
| 10,550(9,073)/2(35) 6,150(5,289)/-18(0) | 0-142 | 0-240 | ||
Contact us to locate the container you need!
